Section 3.6
User defined data types 		cplusplus.com

We have already seen a sort of data type that is defined by the user (programmer): the structures. But moreover than these there are other sorts of user defined data types:

Definition of own types (typedef).

C++ allows us to define our own types based on other existing data types. Ir order to do that we shall use keyword typedef, whose form is:
typedef   existing_type   new_type_name ;
where existing_type is a C++ fundamental or any other defined type and new_type_name is the name that the new type we are going to define will receive. For example:
typedef char C;
typedef unsigned int WORD;
typedef char * string_t;
typedef char field [50];
In this case we have defined four new data types: C, WORD, string_t and field as char, unsigned int, char* and char[50] respectively, that we could perfectly use later as valid types:
C achar, anotherchar, *ptchar1;
WORD myword;
string_t ptchar2;
field name;
typedef can be useful to define a type that is repeatedly used within a program and it is possible that we need to chacnge it in a later version, or if a type you want to use has a too long name and you want it to be shorter.

Unions

Unions allows a same portion of memory to be accessed using different data types, being in fact all of them the same location in memory. Its declaration and use is similar to the one of structures but its functionality is totally different:
union model_name {
  type1 element1;
  type2 element2;
  type3 element3;
  .
  .
} object_name;
All the elements of the union declaration occupy the same space of memory. Its size is the one of the greatest element of the declaration. For example:
union mytypes_t {
  char c;
  int i;
  float f;
  } mytypes;
defines three elements:
mytypes.c
mytypes.i
mytypes.f
each one of a different data type. Like all of them are referring to a same location in memory the modification of one of the elements will afect to the value of all of them.

One of the uses a union may have is to unite an elementary type with an array or structures of smaller elements. For example,

union mix_t{
  long l;
  struct {
    short hi;
    short lo;
    } s;
  char c[4];
} mix;

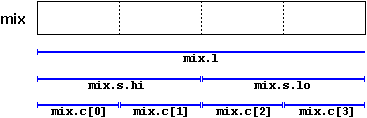

defines three names that allow us to access the same group of 4 bytes: mix.l, mix.s and mix.c and which we can use according to how we want to access it, as long, short or char respectively. I have mixed types, arrays and structures in the union so that you can see the different ways how we can access to the data:

Anonymous unions

In C++ we have the option that unions be anonymous. If we include a union in a structure without any object name (the one that goes after the key brackets { }) the union will be anonymous and we will be able to access to the elements directly by its name. For example, look at the difference between these two declarations:

union anonymous union
struct {
  char title[50];
  char author[50];
  union {
    float dollars;
    int yens;
  } price;
} book;

struct {
  char title[50];
  char author[50];
  union {
    float dollars;
    int yens;
  };
} book;

The only difference between the two pieces of code is that in the first one we gave a name to the union (price) and in the second not. The difference is when accessing to members dollars and yens of an object. In the first case it would be:

book.price.dollars
book.price.yens
whereas in the second it would be:
book.dollars
book.yens
Once again I remind you that because it is a union, the fields dollars and yens occupy the same space in the memory so they cannot be used to store two different values, that means that you can include a price in dollars or yens but not both.

Enumerations (enum)

Enumerations serve to create data types to contain something different that is not limited neither to numerical or character constants nor constants true and false. Its form is the following:
enum model_name {
  value1,
  value2,
  value3,
  .
  .
} object_name;
For example, we could create a new type of variable called color to store colors with the following declaration:
enum colors_t {white, blue, green, yellow, orange, red, purple, black};
Notice that we do not include any fundamental data type in the declaration. To say it somehow we have created a new data type without being based on any other existing one: the type color_t, whose possible values are the colors that we have enclosed within key brackets {}. For example, once declared the colors_t enumaeration the following expressions will be valid:
colors_t mycolor;

mycolor = blue;
if (mycolor == green) mycolor = red;
In fact our enumerated data type is compiled as an integer and their possible values are any type of integer constant specified. If this one is not specified, the integer value equivalent to the first possible value is 0 and the following ones follow a +1 progression. Thus, in our data type colors_t that we defined before, white would be equivalent to 0, blue would be equivalent to 1, green to 2 and so on.

If we explicitly specify an integer value for some of the possible values of our enumerated type (for example the first one) the following values will be the increases of this, for example:

enum months_t { january=1, february, march, april,
                may, june, july, august,
                september, october, november, december} y2k;
in this case, variable y2k of the enumerated type months_t can contain any of the 12 possible values that go from january to december and that are equivalent to values between 1 and 12, not between 0 and 11 since we have made january be equal to 1.
